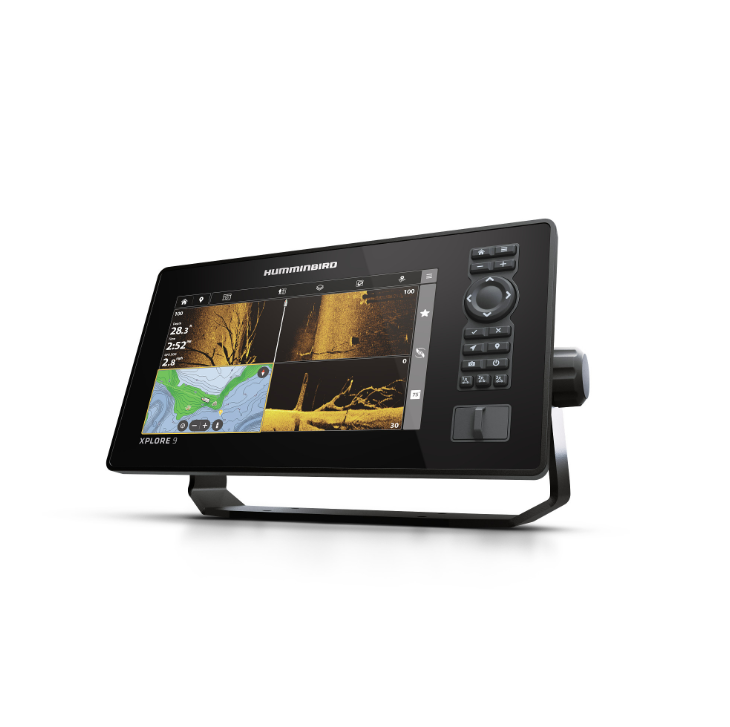

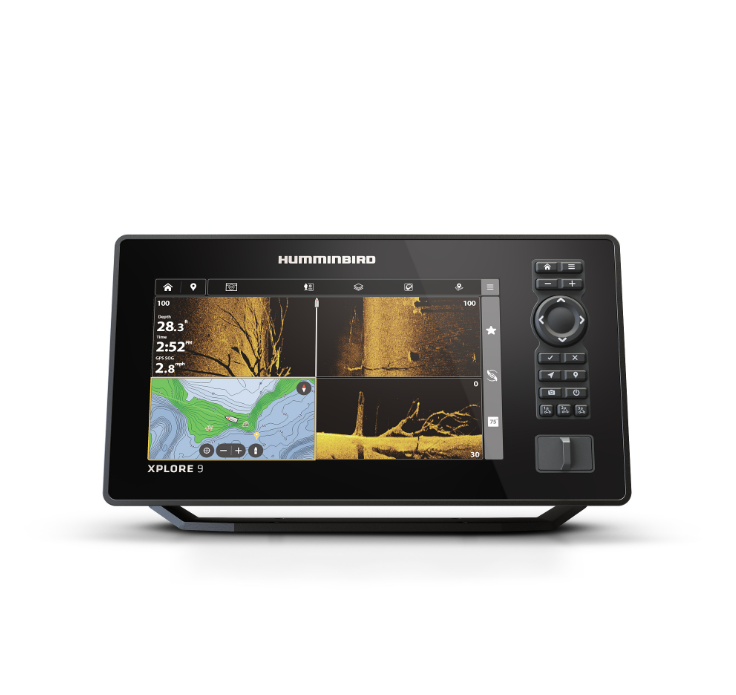

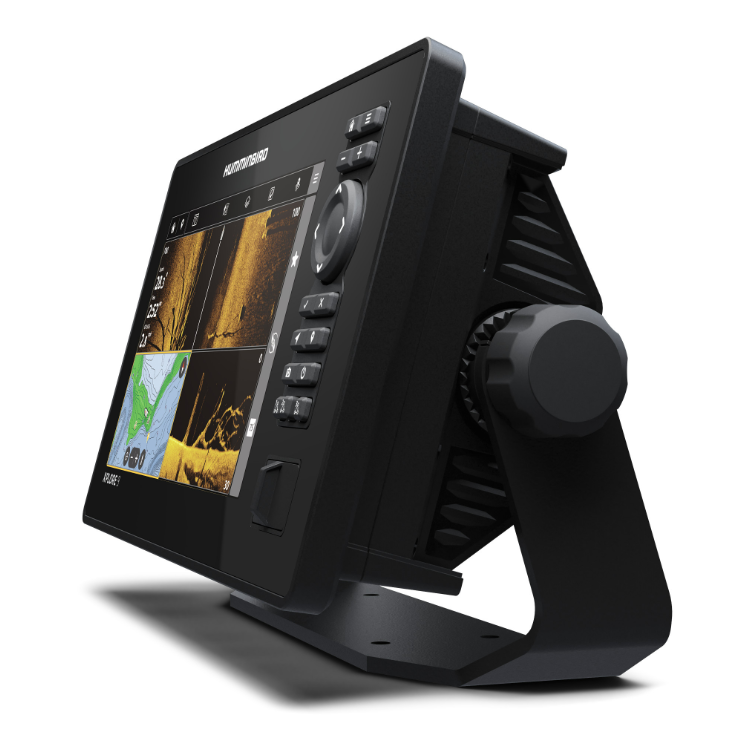

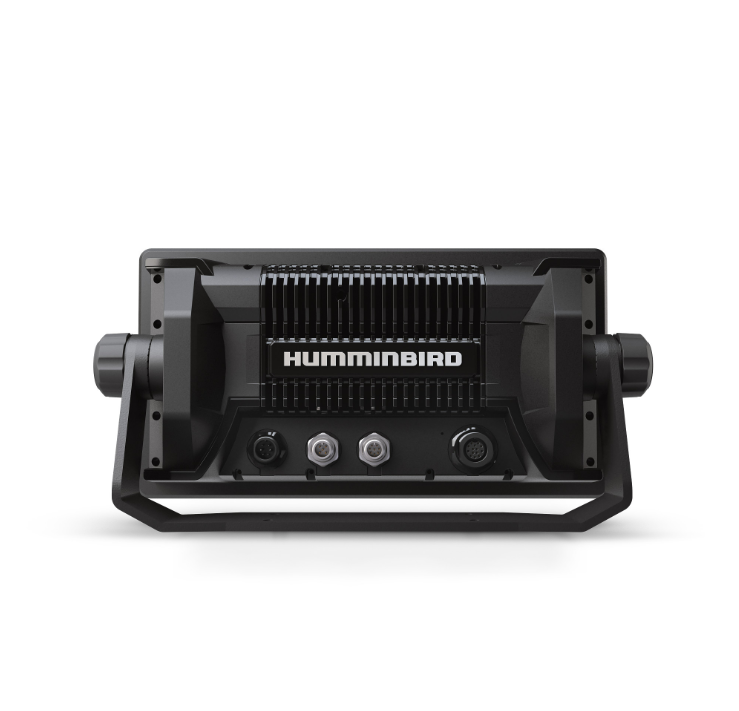

HUMMINBIRD XPLORE 9 CMSI

Item Number 104675 CMSI+, 104674 CHO
Series XPLORE
Display Size – Diagonal 22.86cm
Display Pixel Matrix HD 1280 x 720
Enhancements Cross Touch Interface
In Pane Touch Targets
Anti-glare, edge to edge screen display
Updated Home Screen and User Interface
Updated Menu/Setting structure
New Keypad Design
Two Micro SD card slots
Twist lock cable connections
Wi-Fi Software Updates
Utilizes the same power cable as APEX units
Dual Band GPS for better position accuracy
Display Features High-Def Display
Engineered for Polarized Eyewear
Sonar Capability MEGA Side Imaging+
MEGA Down Imaging+
Dual Spectrum CHIRP
MEGA Live 2 Imaging+ & MEGA 360 Compatible
CHIRP-Frequencies Supported Full: 150-220 kHz @ 25/42o
Narrow: 180-240 kHz @ 25o
Wide: 140-200 kHz @ 42o
Depth & Range – Sonar MEGA Side Imaging+®
Range:
800ft (244m) 455 kHz: 405-505 kHz
400ft (122m) MEGA: 1100-1200 kHz MEGADown Imaging+®
Depth:
400ft (122m) 455 kHz: 420-520 kHz
200ft (61m) MEGA: 1125-1225 kHz
Fish Finder Functionality Intuitive Cross Touch®
Quick-Launch Home Screen
Connectivity CE
NMEA 2000®
Bluetooth®
Ethernet
Wi-Fi
MFi
Memory Card Slot Duel Micro SD
Waterproof Rating IPX7
Power Input 10-20 volts
Power Output Peak-to-Peak 8000 Watts
Power Output RMS 1000 Watts
Transducer Mount Location Transom
GPS Chartplotting Included
GPS Trackplotting Included
LakeMaster Compatibility Yes
Coast Master Compatibility Yes
Navionics Gold/HotMaps Compatibility Yes
Navionics Platinum + Compatibility Yes
Platinum Compatibility Yes
Heading Sensor GPS Compatibility Yes
Upgradable Software Yes
Included in the box
*Applies for CMSI+ (104675)
XPLORE Fish Finder, Power Cable, Unit Cover, Gimbal Mount with Hardware and Knobs

PLUG-AND-PLAY MINN KOTA CAPABILITY
Share waypoints between XPLORE and your phone via the One-Boat Network® App
